Excel Pivot Tables

A Pivot Table is way to present information in a report format. The idea is that you can click drop down lists and change the data that is being displayed. For example, choose just one student from a drop down list and view only his or her scores. Pivot tables are a lot easier to grasp when you see them in action. Here's the one we're going to create in this section:

A Pivot Table in Excel 2007

Look at Row 4. This shows that the student is Elisa. If we click Elisa's drop down arrow, we'll see this:

A Pivot Table Drop Down List

Now we have another student to select (we'll only use two students, for this tutorial). We could untick Lisa, and tick Mary instead. Then her scores would display.

The Subject and Month cells also have drop down lists. So we could view only January's scores, and just for Art and English, for example.

So this is a Pivot Table - a report that we can manipulate by selecting items from drop down lists. Let's make a start.

The first thing you need for a Pivot Table is some data to go in it. Instead of typing all the data out, you can simply grab ours. Go to this web page on our website and save the spreadsheet to your own hard drive:

Download the Data for the Pivot Table (Right click and select Save Link/Target As)

Excel 2016 Users Download the Data for the Pivot Table

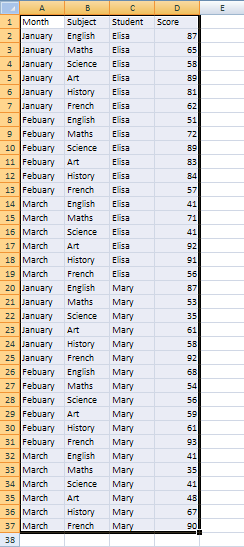

Once the spreadsheet is on your own computer, open it up. You should see this (If you get a warning across the top, click on Enable Editting):

The Pivot Table Data in an Excel Spreadsheet (New window)

Highlight the data that will be going in to your Pivot Table (cells A1 to D37).On the Excel Ribon, click the Insert tab. From the Insert tab, locate the Tables Panel.

Pivot Tables are on the Tables panel in Excel 2007

Pivot Tables panel in Excel 2013

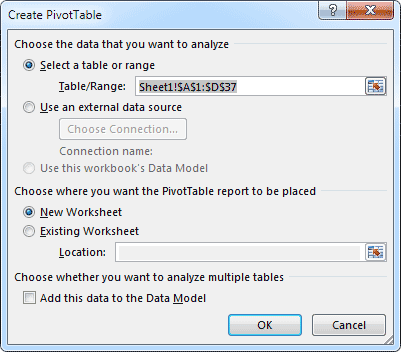

On the Tables panel click Pivot Tables. The Create Pivot Tables dialogue box appears:

The Create Pivot Table dialogue box

In the dialogue box above, the data that we highlighted is in the Table/Range textbox. You can select different cells by clicking the icon to the right of the Table/Range textbox. You can also specify an external data source, such as a text file, for the data in your Pivot Table.

We've selected a New Worksheet as the place where the Pivot Table will be placed. Click OK.

When you click OK, Excel presents you with a rather complex layout. The area on the right should look something like one of these below, depending on which version of Excel you have:

Pivot Table Field List

It helps to have a look again at what we're trying to create. Here's the completed Pivot Table again:

Completed Pivot Table

Now take a look at the Pivot Table Field List image again, the one above the completed pivot table. It has tick boxes for Month, Subject, Student, and Score. These are column headings from the original spreadsheet data. We've put the Month in cell A7 on our Pivot Table, Subject is in cell B6, Student is in cell B4, and Score is the Average scores in cells C8 to G10. You'll see how it works, though.

The idea is that you tick a box in the Pivot Table Field List, and then drag it to the four areas below. Excel will take care of the rest.

So, tick all four boxes in the field list:

Tick all four items

Pvot Table Fields

Excel will create a basic (and messy) Pivot Table for you. But we're going to put our 4 fields into the 4 areas below. Here are the 4 areas we can drag to:

The four fields

For the Report Filter, we want the name of a Student. For the Column Labels, we want the Subject, and for the Row Labels, we'll just have the Month. The Values will be the Average scores.

If you look at the Field areas after you have ticked all four boxes, however, you may see something like this:

The items are in the wrong place

Pivot Table Fields

Month, Subject and Student have all been grouped under Row Labels. You can drag and drop these, though.

So click on Student in the Row Labels box. Hold down your left mouse button, and then drag it in to the Report Filter box. If you don't fancy dragging and dropping, simply click the Student item with your left button. From the menu that appears, select Move to Report Filter:

Click on Move to Report Filter

Your Field areas will then look like this:

The Student item has been moved to Report Filter

Move Subject from Row Labels to the Column Labels area:

Move to Column Labels

Your Field areas will then look like this:

All four items have been moved

The Pivot Table on your spreadsheet will look a lot different, too. It should be looking like this:

Your Excel 2007 Pivot Table so far

Our Pivot Table is coming along, but the scores are all wrong, and it needs tidying up a bit. We'll continue this tutorial in the next part, below.
