Home and Learn: Games Programming Course

The NetBeans Software

When you first run NetBeans, you'll see a screen something like this one:

The NetBeans Software - First Start (49K)

You may have to drum your fingers and wait a while, as it's not the fastest thing in the world.

To start a new project, click on File > New Project from the NetBeans menu at the top. A dialogue box will appear.

The New Project Dialogue Box

We're going to be create a Java Application. In earlier versions of Netbeans, select Java under Categories, and then Java Application under Projects. Click the Next button at the bottom to go to step two.

In later versions of Netbeans, you may see more Java options under Categories. If so, select the one for Java with Ant:

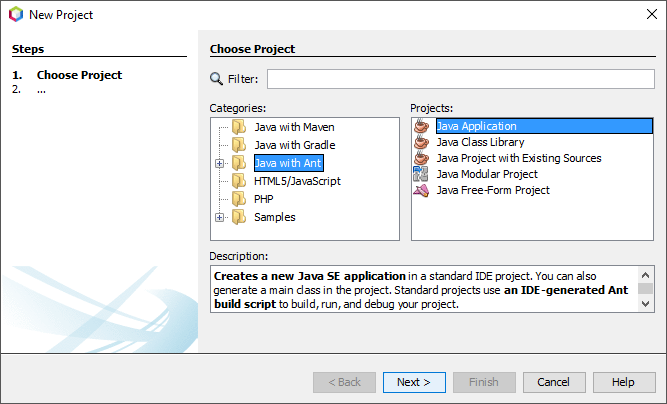

NetBean's 11 New Project Wizard

When you click Next, you'll see a screen like this one:

NetBean's New Project Wizard - Step Two

In the Project Name area at the top, type a Name for your Project. Notice how the text at the bottom changes to match your project name (in the text box to the right of Create Main Class):


The Class created will be called FirstProject, with a capital "F", capital "P". The package is also called firstproject, but with a lowercase "f" and lowercase "j".

The default location to save your projects appears in the Project Location text box. You can change this, if you prefer. NetBeans will also create a folder with your project name, in the same location. Click the Finish button and NetBeans will go to work creating all the necessary files for you.

When NetBeans returns you to the IDE, have a look at the Projects area in the top left of the screen (if you can't see this, click Window > Projects from the menu bar at the top of the software):

Projects Area in NetBeans

Click the plus symbol to expand your project, and you'll see the following:

Folders in the Project

Now expand Source Packages to see your project name again. Expand this and you'll see the Java file that is your source code.

The Java Source File

This same source code should be displayed to the right, in the large text area. It will be called FirstProject.java. If you can't see a code window, simply double click FirstProject.java in your Projects window above. The code will appear, ready for you to start work.

The coding window that appears should look like this:

The Java coding window in NetBeans

One thing to note here is that the class is called FirstProject:

public class FirstProject {

This is the same name as the java source file in the project window: FirstProject.java. When you run your programmes, the compiler demands that the source file and the class name match. So if your .java file is called firstProject but the class is called FirstProject then you'll get an error on compile. And all because the first one is lowercase "f" and the second one uppercase.

Note that although we've also called the package firsproject, this is not necessary. We could have called the package someprogramme. So the name of the package doesn't have to be the same as the java source file, or the class in the source file: it's just the name of the java source file and the name of the class that must match.

In the next part, you'll learn about Java comments.
